Magnesium anode Type 8 - 8.66 * 2.87 * 1.02, (13.38inch), Approx 0.1.58Lb. AZ63-1.5VDC.

Article: B310080

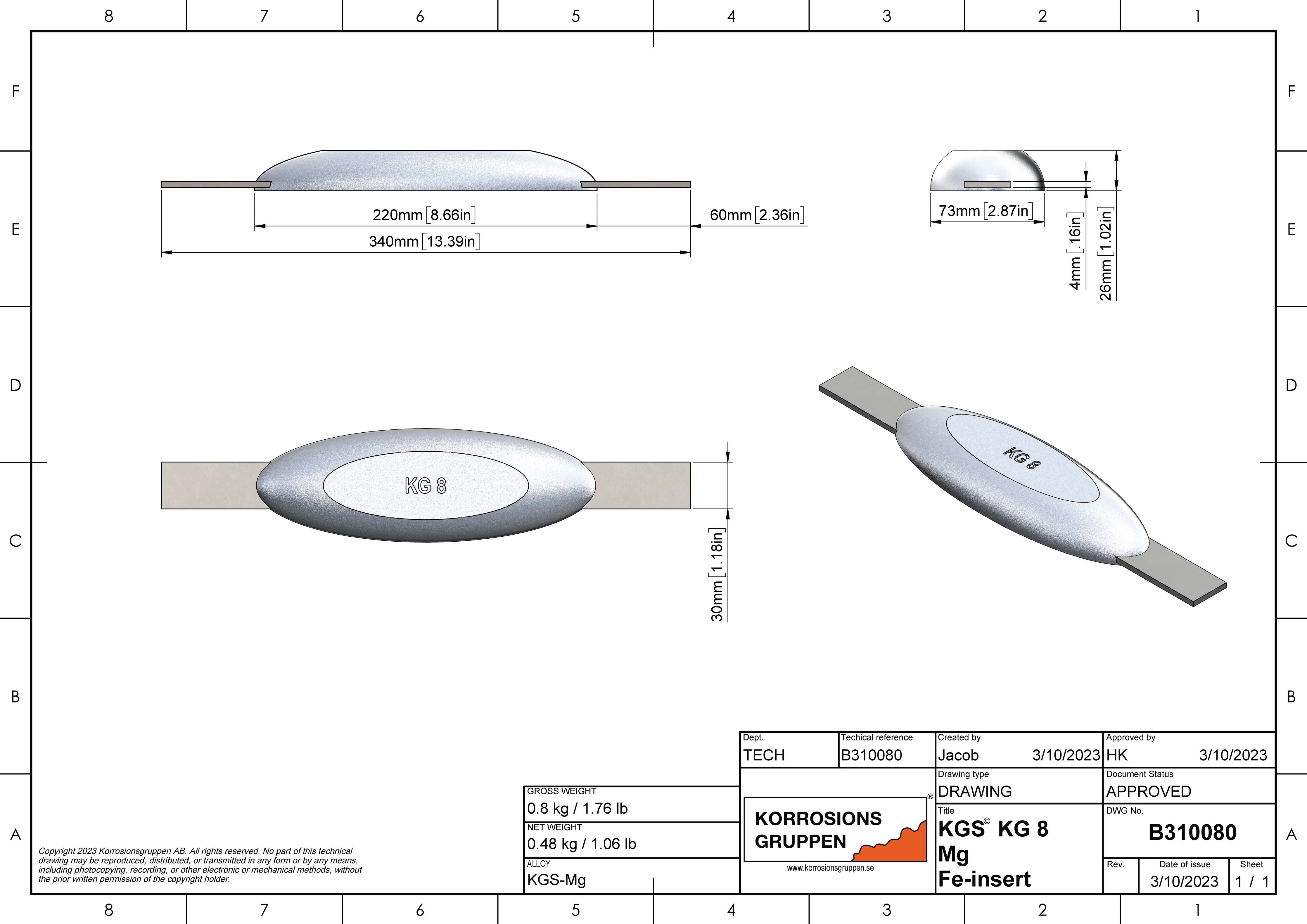

Drawing

  • Total length: 340mm/13.39in
  • Width: 73mm/2.87in
  • Height: 26mm/1.02in
  • Hole distance:
  • Net weight: 0,72kg/1,59lb
  • Gross weight: 0.8kg/1.76lb
  • Reinforcement: FE
Save 32% Save 32%
Original price £50.00
Original price £50.00 - Original price £50.00
Original price £50.00
Current price £34.00
£34.00 - £34.00
Current price £34.00
Availability:
In stock

Bulk discount
PCS Discount Price
5 5 % £32.30 /st
10 10 % £30.60 /st
20 15 % £28.90 /st
50 20 % £27.20 /st
Product description

Product specification

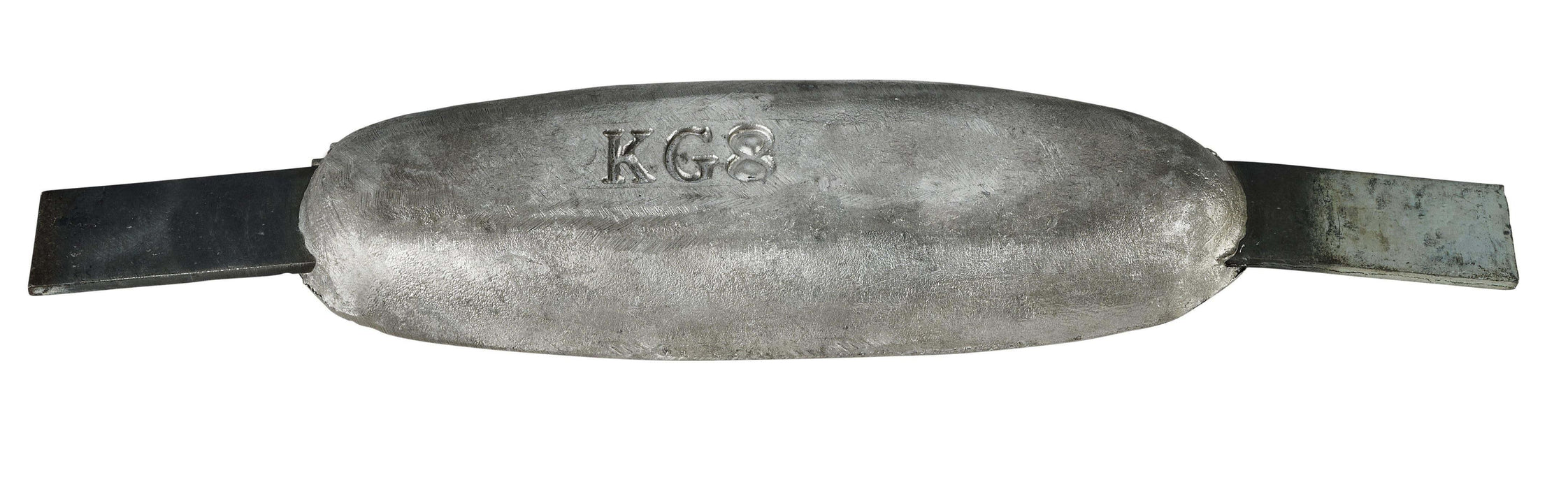

Type 8 Magnesium

Material: Magnesium

Alloy : AZ 63B

Article: B310080


  • Net weight : 0.72 KG/1.59 lbs
  • Gross weight: 0.8 KG/1.76 lbs


  • Reinforcement/Insert: Steel


  • Total length: 340mm/13.39 inch
  • Length: 220mm/8.66 inch
  • Width: 73mm/2.87 inch
  • Height: 26mm/1.02 inch

Mounted with bolt or welded to construction. Note no for drilled holes in the reinforcement.



Application areas:

  • Ship hull
  • Port
  • Slip
  • Cable
  • Pipeline
  • Dykdalb
  • Pump
  • Pontoon
  • Piers
  • Pillar

Magnesium anodes are mainly used in brackish water and fresh water. Magnesium anodes can be used in brackish water if the resistivity exceeds about 1.0 Ωm.

With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes thorough testing and quality assurance, as it has been for over 30 years ...

Are you unsure of the type of material to use? Ask us, we can!

Technical data

  • Capacity: 1230 Ah / kg(2711.68 Ah / lbs)
  • Consumption: 13.3 kg / A year(29.32 lbs / A year)
  • Efficiency: about 55%
  • Potential: -1 500 mV rel Ag / AgCl in seawater


Typical chemical composition, AZ 63B (most common alloy in water), magnesium.

Material

% of weight

Aluminum (Al)

min 5.3 max 6.7

Zinc (Zn)

min 2.5 max 3.5

Manganese (Mn)

> 0.3

Silicon (Si)

~ 0.1

Copper (Cu)

<0.05

Iron (Fe)

<0.01

Magnesium

Remaining
